Description

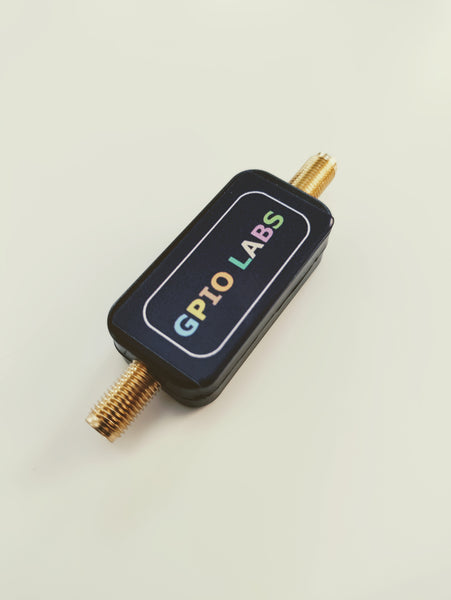

notch filter pedal DAB and TV Band Notch Filter 170 MHzPRODUCT DESCRIPTION Digital Audio Broadcast and TV Band notch filters are used to reject strong DAB and VHF TV Band signals. A good Notch filter will reject these signals and have low insertion loss for signals outside the band. DAB and TV signals can saturate a receiver very easily. If a receiver is saturated it will not be able to pick up signals in other bands for which it was designed. A DAB notch filter can prevent receiver saturation. This is a
PRODUCT DESCRIPTION
Digital Audio Broadcast and TV Band notch filters are used to reject strong DAB and VHF TV Band signals. A good Notch filter will reject these signals and have low insertion loss for signals outside the band.
DAB and TV signals can saturate a receiver very easily. If a receiver is saturated it will not be able to pick up signals in other bands for which it was designed. A DAB notch filter can prevent receiver saturation.
This is a 7th order DAB and TV band III Notch Filter with excellent rejection in the 170 MHz to 240 MHz band in a sturdy plastic enclosure. The filter works up to 3 GHz with minimal out-of-band insertion loss.
SPECIFICATIONS
| Frequency (MHz) | Attenuation (dB) |
| 130 | 1 |
| 140 | 2 |
| 150 | 2.7 |
| 160 | 5 |
| 170 | 19 |
| 174 | 35 |
| 180 | 60 |
| 185 | 75 |
| 190 | 75 |
| 195 | 75 |
| 200 | 70 |
| 205 | 70 |
| 210 | 70 |
| 215 | 60 |
| 220 | 45 |
| 225 | 30 |
| 230 | 20 |
| 235 | 8 |
| 240 | 5 |
| 250 | 3 |
| 270 | 1.6 |
Insertion loss from 300 MHz to 3 GHz < 1.5 dB
NOTES
- The filter uses SMA-F connectors
- The Maximum RF input power for this filter is +30 dBm or 1 Watt
